Face Single Combo Exit Signs Collection - Red Letters

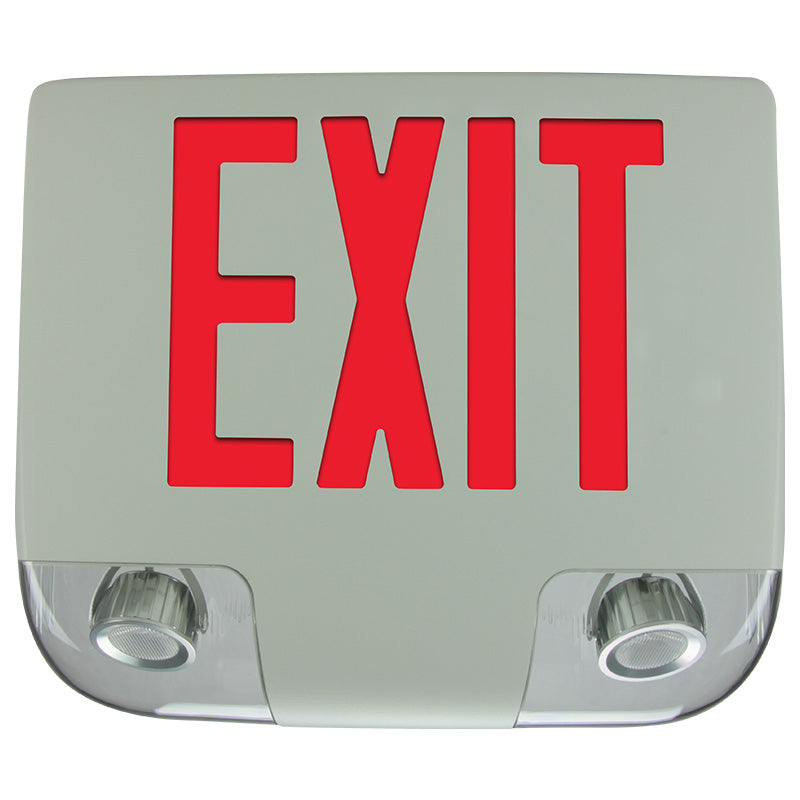

Single Face Exit Sign Combos

Single face exit sign combos integrate a single-sided illuminated EXIT legend with emergency lighting heads in one streamlined fixture. These UL 924 listed LED exit sign combos deliver clear egress signage plus supplemental pathway lighting for corridors, stairwells, and utility rooms. See all Exit Sign & Emergency Light Combos.

UL 924 Compliant LED Illumination 90-Min Backup Single-Face Visibility Universal Mounting
Buyers Guide Tips

What to Look for in Single Face Exit Sign Combos

  • Compliance & runtime: UL 924 listing with a minimum 90-minute emergency operation; align details with your AHJ under NFPA 101.
  • Legend & orientation: Single-face visibility in the approach direction; standard 6 in letters; choose red or green for contrast and plan specs.
  • Directional chevrons: Prefer field-selectable arrows so one SKU fits left/right egress paths and reduces inventory complexity.
  • Lamp heads & photometrics: Adjustable LED heads; size lumen output and beam spread to meet corridor spacing and target foot-candles along the egress path.
  • Power & electronics: Universal 120/277 VAC, solid-state charger, status indicator, and test switch for code checks.
  • Battery: Maintenance-free Ni-Cd or lithium packs rated for 90 minutes; consider heater options for cold spaces.
  • Mounting hardware: Universal canopy/bracket for wall, ceiling, or end-mount; verify junction-box pattern and rod/drop length for ceiling height.
  • Environment & construction: Specify damp/wet-location ratings where needed; choose edge-lit acrylic for a clean look or thermoplastic/metal for durability; use tamper-resistant hardware in public areas.
  • Diagnostics & upkeep: Self-testing electronics automate monthly/annual checks and simplify recordkeeping.
  • Placement & sightlines: Maintain clear visibility from the intended approach; mount to avoid obstructions and aim heads along the path of egress.

Ideal for schools, offices, retail spaces, and healthcare facilities, these fixtures offer field-selectable red or green legends, directional chevrons, and adjustable LED lamps. With universal mounting options—wall, ceiling, or end—they include built-in Ni-Cd or lithium batteries for a full 90-minute runtime. Many models also offer self-testing exit sign combos. The single-face configuration maximizes visibility from one direction, reducing fixture count and installation complexity.

Options include edge-lit or low-profile housings, dual-voltage input (120/277 VAC), damp-location ratings, and industrial designs. These single-face combos provide an efficient, all-in-one life-safety solution that saves time, space, and cost.

What is a single face exit sign combo?
A dual-function fixture with an illuminated EXIT legend on one side and integrated emergency lights—ideal for corridors or rooms where visibility is needed from one direction only.

Looking for other configurations? Browse double face exit sign combos for two-sided visibility, or choose by legend color: red letter exit sign combos and green letter exit sign combos.

Filter products

Match all
Clear all

13 Products

Single Face Exit Sign Combos – Spec Guide

  • Compliance & runtime: UL 924 listed; battery systems provide a minimum 90-minute operation per code.
  • Orientation & visibility: Single-face viewing from the approach direction; standard 6-in letters with typical viewing up to 100 ft (jurisdictional variants apply).
  • Chevrons: Field-selectable directional arrows to match egress paths and reduce SKU complexity across layouts.
  • Lamp heads & photometrics: Adjustable LED heads; design to ≥ 1 fc average and ≥ 0.1 fc minimum along the path of egress for 90 minutes.
  • Power & electronics: Universal 120/277 VAC, solid-state charger, low-voltage disconnect, status LED, and test switch.
  • Battery: Maintenance-free Ni-Cd or lithium packs rated for 90 minutes; optional heater kits for cold environments.
  • Mounting: Universal canopy/bracket for wall, ceiling, or end-mount; verify junction-box pattern and clearances at doors/corridors.
  • Environment: Specify damp/wet-location ratings where required; consider IP/NEMA enclosures for wash-down or dusty areas.
  • Construction & finish: Edge-lit acrylic for a clean aesthetic or rugged thermoplastic/metal housings; tamper-resistant hardware in public spaces.
  • Maintenance & diagnostics: Optional self-testing electronics automate monthly/annual checks; keep logs per AHJ requirements.

FAQs About Single Face Combo Exit Signs

What is a single-face combo exit sign?

It’s a unified emergency fixture with one illuminated EXIT legend and built-in light heads, so one device provides both signage and pathway lighting from a single viewing side.

Where are single-face combos used?

Common in corridors, stairwells, storage rooms, and other spots where people approach from one direction and only need the EXIT legend visible on one side.

Can I choose the arrow direction?

Yes—most models include field-selectable chevrons so you can set the left/right arrow during installation to match the exit route.

Do they include battery backup?

Yes—most units include Ni-Cd or lithium-ion batteries that provide at least 90 minutes of emergency operation during a power outage.

Are self-testing versions available?

Yes—many models offer self-testing diagnostics that run monthly checks and the full 90-minute test, making inspections easier.

Can these combos be mounted on ceilings?

Yes—they typically ship with universal hardware for wall, ceiling, or end mounting, so you can choose what fits the space best.

What housing styles are offered?

Options include edge-lit, low-profile thermoplastic, industrial, and damp-location designs to match your look and environment.
