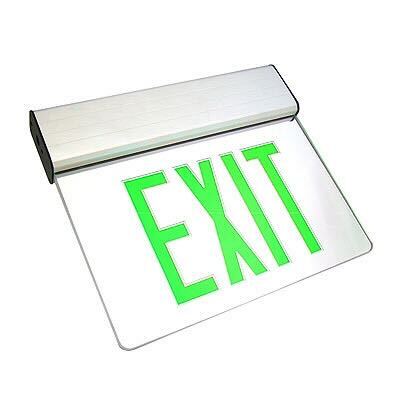

Edge Lit LED Exit Sign with Aluminum Housing - Surface Mount - with Battery Backup - Green Letters
Couldn't load pickup availability
Red Edge Lit LED Exit Sign with Aluminum Housing
The EDGE Series Edge-Lit LED Exit Sign is a popular choice among designers, architects, and contractors. Favored for its upscale appeal, the EDGE Series features a high-grade acrylic EXIT panel and aluminum surface mount housing. Edge-Lit exit signs are seen throughout commercial office, retail, and apartment buildings. The glowing acrylic EXIT panel is attractive and compliant; no longer will your exit sign draw away from the aesthetic of your interior.
The EDGE Series offers upscale appeal at an attractive price. Compliance is guaranteed; all Edge Lit exit signs are UL 924 Listed and compliant throughout the United States. Surface mounting models such as this one are "universal", they are suitable for top (ceiling) or back/end (wall) mounting applications._This model features a 90-minute battery backup system for emergency operation during power outages. A push button allows for easy testing of the battery backup unit.
The sign can be ordered to be single or double-sided. Double-sided models feature a mirrored insert which gives creates an optical illusion of a clear panel._Operates using 120 or 277v AC power. Damp location rated. This edge lit exit sign is the simple and attractive choice for any commercial interior.
Features
- Attractive - glowing red high-grade acrylic exit panel
- Efficient - uses less than five watts electricity at all times
- Push-to-test button with LED charging indicator
- Works for single and double face applications
- Universal mounting canopy
- UL924 Listed for the United States
- 5 year warranty
Application
The EDGE Series is designed for indoor commercial use. It is a popular choice for all types of applications and the EDGE Series is favored for its high-end style and design. Requires 120 or 277 volt electricity._
External Specifications
The Edge Lit exit sign's housing is constructed from aluminum and available in white, black, or a classic brushed finish. The panel is a high-grade acrylic that is laser-etched with the word "EXIT" in red.
Internal Specifications
This Edge Lit uses red LEDs located within the housing provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features nickel-cadmium battery pack.
Electrical Specifications
120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.
Code Compliance
All Edge Lit exit signs are UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.
Warranty
Five-year warranty on parts, five-year prorated warranty on battery.
Maintenance Profile
The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium battery is replaceable.
Lifespan
8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).
Options
There are no options for this Edge Lit exit sign.
Technology
Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.
Appeal
Affordable construction and design makes this Edge Lit exit sign ideal for almost any commercial application.
Overall Value
High value rating: this model offers an attractive, high end appeal for an affordable price.
Installation
This Edge Lit LED exit sign is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
