Designer Emergency Light - Auto Test - Remote Capable
Couldn't load pickup availability
Overview

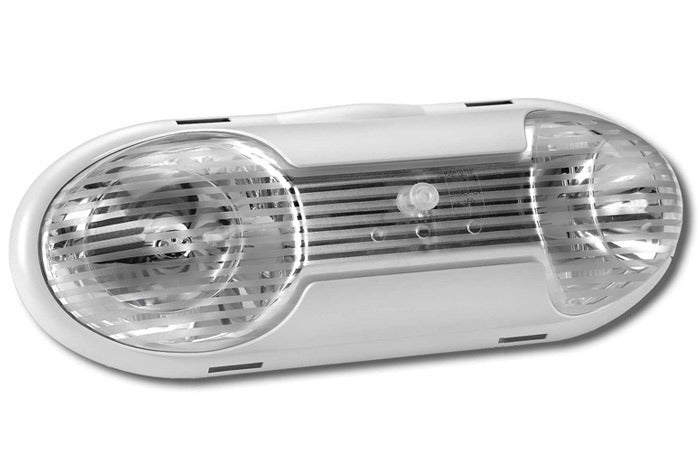

The Designer Emergency Light with auto-test diagnostics is an indoor and outdoor commercial emergency light designed for architectural applications that can be exposed to water or moisture. The DEL Wet Location Wet Location emergency light is popular for areas that are vulnerable water from fire sprinkler activation. The DEL wet location emergency light is constructed from high-quality corrosion, vandal, and flame resistant polycarbonate that features security latches.
The Laser Path Marking increases the ability of occupants to locate the exit.
The DEL provides powerful halogen illumination and the high-output lens combines with a state of the art reflector to create the largest illumination area. The clear polycarbonate cover of the DEL is UV stabilized to reduce yellowing and enable superior light output. The IP65 rating ensures its reliability in adverse weather conditions. A variety of housing color choices are available as an additional option
The Auto-Test diagnostics on the DEL emergency light eliminate the need for manual monthly and yearly emergency light testing. The lamps, battery, and circuitry are continually monitored to ensure proper functionality. A visual display alerts observers to any malfunctioning equipment. Operates using 120 or 277v AC power. Provides a minimum of 90 minutes of emergency illumination via a 6-volt 4.5 amp lead-acid battery backup system.
The most intriguing option available for the DEL emergency light is the "path marking system", which offers a new level of egress safety. When models outfitted with the path marking system switch into emergency mode, a red laser will ililluminate as an egress path marker, pointing from the emergency light to the nearest exit.
Features
- Halogen illumination
- IP65 wet location rated
- Auto-test diagnostics are standard
- Polycarbonate housing is sleek and stylish
- Vandal resistant housing and latch clips
- Laser path marking system optional
- UL924 Listed for the United States
- 5 year warranty
Application
The DEL emergency light is designed for indoor and outdoor use. The sleek style and compact design enable this emergency light to blend well with all types of interiors, including upscale environments. The wet location rating allows the DEL to be used outdoors and in other areas exposed to rain and moisture.
External Specifications
The housing of the DEL emergency light is constructed from a high-grade, clear polycarbonate that is corrosion, flame, and vandal resistant. The housing is curved and flush mounts to most surfaces to create a stylish aesthetic.
Auto-Test Diagnostics
Auto-Test Diagnostics are standard on the DEL. This option eliminates the testing requirements associated with conventional emergency lights. The auto-test components continually monitor the operation of the unit, including the lamps, battery, transformer, and circuit board. A display of LED lights in different colors and blinking patterns provide a visual alert of any operational problems to those in charge of maintaining the units.
Path Marking System
The Path Marking System option available on the DEL emergency light creates a new level of egress safety. The patented "path marking system" clearly marks the exit and the path leading towards the exit in smoke-filled environments by producing a red laser that visually pinpoints the nearest path of egress. The laser can be installed on either side of the DEL emergency light and is perfect for use in hospitals, nursing homes, schools, hotel resorts, and apartment complexes.
Reflector
The DEL emergency light is made of injection-molded, self-extinguishing, UV stabilized polycarbonate. The reflector supports components including the lamp assemblies and circuit.
High-Output Design
The DEL emergency light incorporates a powerful high-output lens. The diffusion lens has been designed to efficiently and effectively transmit the largest amount of light with the least transmittal loss.
Internal Specifications
Lamp Type: Halogen.
Lamp Rating: 10 watts. Lamp Life: 2,000 hours (expected average).
Electrical Specifications
120/277v AC dual-voltage operation is standard. Other voltages are available upon requests such as 220v and 240v.
Battery
6 volt, 4.5 amp lead-acid battery pack. 3-5 year lifespan.
Code Compliance
UL924 Listed for the U.S. and Canada, CS860, NFPA Life Safety 101, UL Listed for Damp Locations.
Warranty
Five-year warranty on parts, five-year prorated warranty on the battery.
Maintenance Profile
Auto-test diagnostics eliminate monthly and yearly testing of the battery backup system.
Lifespan
8-10 year expected lifespan on all components except replaceable battery (5-7 year lifespan).
Options
Remote Capability - The unit can be outfitted with an additional 6-volt 4.5-amp battery that can provide support to as many as two additional 6-volt 5.4-watt remote lamp heads.
Custom Colors - The unit can be outfitted with a custom colored housing of red, black, or blue.
Technology
The battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push-button testing is easy and reliable.
Appeal
The low profile, stylish design creates a high level of appeal for such an affordable fixture.
Overall Value
This low profile emergency light is the perfect fixture for many commercial interiors, especially upscale environments. This emergency light is avoidably priced with an attractive design and reliable components.
Installation
This emergency light is suitable for the surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and black(Common) wires for 120v AC connections and the red(277v) and black(Common) wires for 277v AC connections.
