Exit Light Combo Green - Fully Adj. Square Heads - LED Only

Overview

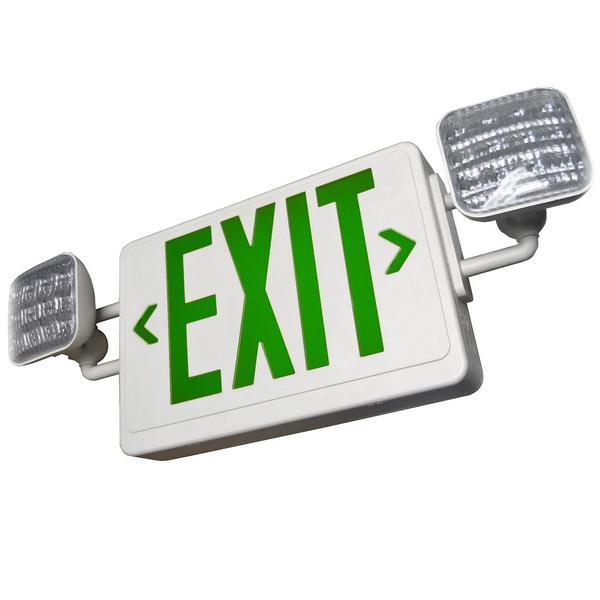

The Green LED Exit Sign Combo with LED Lights combines an efficient LED exit sign with reliable emergency lamps. The Green LED Exit Sign Combo with LED Lights being compliant affordable and simple. Only one electrical connection is required when installing an emergency exit combo. Installing an exit sign and separate emergency light requires two electrical connections and maintenance duties for two battery backup systems; eliminate this hassle by purchasing a combo exit sign with lights.

Quality is not sacrificed for a lower bottom line, all Green LED Exit Sign Combo with LED Lights are UL 924 Listed for the United States; they are fire and building code compliant across the country. The EXIT portion of the combo is always ililluminated whereas the emergency lamps only ililluminate when power is lost. The battery backup system is what provides power for the unit when AC power is lost. This model features a 90-minute battery backup system for emergency operation of the exit sign and the emergency lights. A push button allows for easy testing of the battery backup unit.

Features

• Each lamp contains 12 long lasting, efficient ultra-bright white LEDs
• Exit face is ililluminated by long-Life, high intensity, green LEDs
• Remote capacity option available
• Damp location rated
• Easy to install, snap together design
• Injection-molded, UL94 V-0 flame rated, high impact, thermoplastic housing
• Available in white or black finishes
• 6‚Äù letter with a 3/4‚Äù stroke
• Snap-in chevron type directional arrows
• Universal J-Box mounting pattern, canopy included
• 120/277 VAC dual input
• Short circuit, voltage surge, brown-out and low battery voltage disconnect protected
• LED indicator light and push to test switch
• Long life, maintenance-free NiCad battery
• 90 minute U.L. listed emergency run time

Application

The Green LED Exit Sign Combo with LED Lights is designed for all types of indoor exit sign applications from schools to offices to retail stores and more. The Green LED Exit Sign Combo with LED Lights is popular for all types of commercial exit sign and emergency light applications. While supplying brilliant illumination, these bulbs only absorb less than 5 watts of electricity! This unit is can be universally mounted to any ceiling or wall. It comes with (2) E-X-I-T face-plates, a back-plate and surface canopy. Only requires AC power with dual voltage input (120/277).

External Specifications

This unit is constructed from ABS thermoplastic and is suitable for indoor and oudoor and comes standard finished in white. Optional black housing model available as well.

Internal Specifications

Green LEDs provide illumination while consuming less than 5 watts of electricity at all times. Features a sealed lead acid battery pack with the capacity of 6 volts.

Electrical Specs

• Dual Voltage input (option for other voltages available)
• AC Lockout (Prevents battery discharge)
• Low Voltage Battery

Code Compliance

• UL924 Listed for the U.S. and Canada CS860
• NFPA
• Life Safety 101
• UL Listed for Damp Locations

Warranty

All components are guaranteed for 5 years, with a separate 5 year warranty for the battery.

Appeal

Affordable construction and design makes this exit sign ideal for almost any commercial application.

Overall Value

An overall great value, offered at less than $40 it will make your facility code compliant for years to come for both exit signs and emergency lighting fixture requirements.

Installation

This thermoplastic exit sign is suitable for surface (wall and ceiling) installation either indoor or oudoor. Only requires 2 of 3 AC power wires (black, white or red) for operation.
