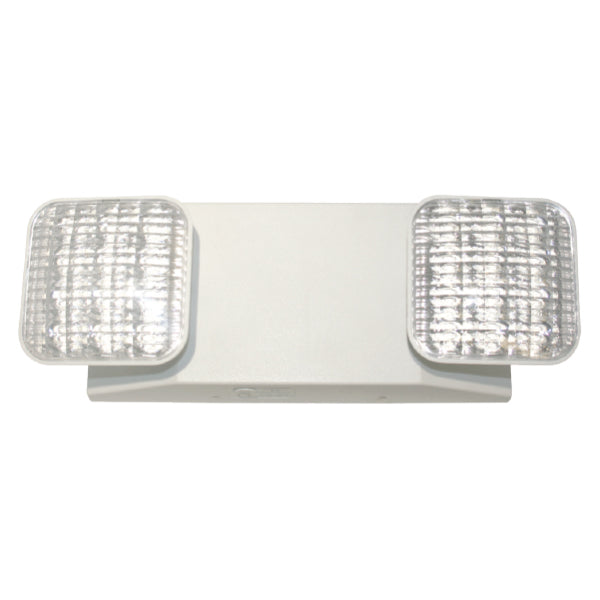

Micro LED Thermoplastic Emergency Unit

The compact QMS Series combines a traditional low-profile appearance with energy-

efficient LED dependability. Fully adjustable square heads in a value-engineered emergency unit provide an economical path of egress illumination for any commercial application. The QMS Series is an excellent match for the QCSS exit/emergency combo.

FEATURES & BENEFITS

•Two (2) 1.0W fully adjustable square heads with long-lasting, high-intensity LED lamps

•Suitable for Damp Locations

•Suitable for ceiling or wall mount

• California Energy Commission (CEC) Title 20 Compliant

SPECIFICATIONS

Illumination: Two (2) fully adjustable long-life, high-intensity LED lamp heads, 1.0W per head

Housing: Injection-molded UL 94 5VA flame-retardant, high-impact resistant thermoplastic enclosure Input: 120/2777VAC Dual primary, 60Hz

Battery: Maintenance-free 3.6V NiCad battery

Operating Temp: 0°C to 50°C (32°F to 122°F)

Run Time: 90-minute emergency run time, 24-hour recharge time

Mounting: Ceiling or wall mount

Finish: White

Certifications: UL 924 Listed for Damp Locations Meets NFPA 101 Life Safety Code, NEC, OSHA California Energy Commission (CEC) Title 20 Compliant
