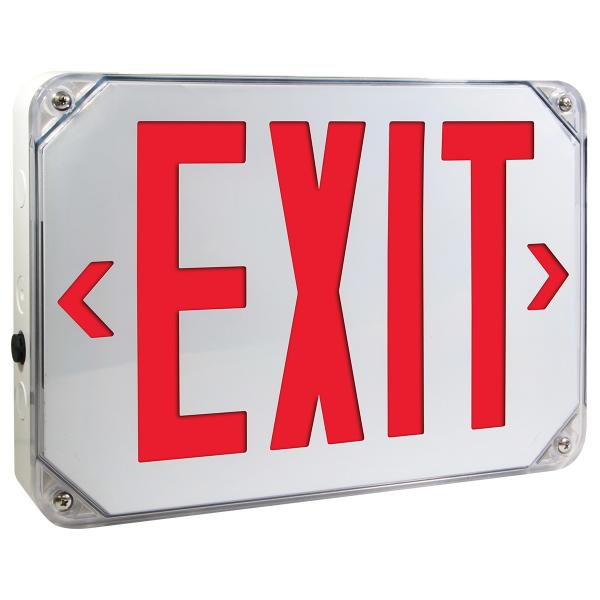

NEMA 4X Exit Sign - New York City Approved - Wet Location

Overview

The NYN4X Series is engineered to withstand extreme conditions. This NYN4X Exit sign meets or exceeds NEMA 4X and City of New York code requirements. The NYN4X Series can be used in parking garages, breezeways and other environments where additional protections are needed due to weather conditions.

Features

• New York City Approved

•Suitable for Wet Locations and NEMA 4X applications

• UL 924 Listed 90 minute emergency run time, 24 hour recharge time

•Fully illuminated 8" characters with 1" stroke •Assembled in USA with global components

Application

NEMA 4X exit signs look almost identical to thermoplastic models but are applicable across a wide range of locations including:

• Hosedown areas/car washes
• Food processing/prep facilities
• Warehouse & cold storage facilities
• Marine locations
• Normal interiors near high-traffic doors exposed inclement weather

SPECIFICATIONS

Illumination: Long-life, high-intensity, red LEDs

Legend: Fully illuminated 8” characters with 1” stroke

Construction: NEMA 4X rated polycarbonate, fully gasketed enclosure with field-selectable directional chevrons

Input: 120/277VAC Dual primary, 60Hz

Battery: Maintenance-free NiCad battery

Operating Temp: 0°C to 40°C (32°F to 104°F)

Run Time: UL Listed 90 minute emergency run time, 24 hour recharge time

Mounting: Universal knockout pattern on backplate for back mount; optional pendant mount

Finish: White

Certfications: UL 924 Listed for Wet Locations, NEMA 4X rated, Meets or exceeds NFPA 101 Life Safety Code, NEC, OSHA and New York City Code requirements
