Medium Power, High Quality Light

Topaz’s Medium Power Flood Light is designed with a sturdy die-cast aluminum housing and IK10 impact rated polycarbonate lens to withstand extreme conditions. With three available mounting options, this fixture is ideal for a variety of applications such as area lighting, pedestrian walkways, building facades and illuminating signage or monuments. With a low-maintenance 50,000 hour functional life, this luminaire saves labor and energy costs.

FEATURES

• NEMA distribution 7H x 7V, provides very wide distribution of 160°H x 140°V

• Die-cast aluminum housing with thermal management and IK10 impact rated polycarbonate lens

• Knuckle, slipfitter, and yoke mounting models available

• Suitable for mounting heights up to 30-feet

• Includes 4-foot power cord (slipfitter & yoke mount) or 12-inch power leads (knuckle mount)

• Integrated knockout for optional photocell

SUGGESTED APPLICATIONS

• Area and flood lighting

• Pedestrian walkways, area of security

• Building façades

• Signage, monuments

GENERAL SPECIFICATIONS

Input Voltage, Frequency Hz: 120-277V, 50/60Hz

Power Factor, THD %: >0.9, <20%

Dimmable: 1-10V

Surge Protection Rating: 6kV

Efficacy: Up to 130 LPW

CRI: 80

Beam Angle: 115°H x 90°V

Field Angle: 160°H x 140°V

BUG Rating: B3-U3-G2

Functional Life (L70): 50,000 hours

Location Rating: Wet

IP Rating: IP66

EPA Rating:

Knuckle Mount: 0.67 ft2

Slipfitter Mount: 0.82 ft2

Yoke Mount: 0.72 ft2

Ambient Operating Temp: -40°F to 113°F

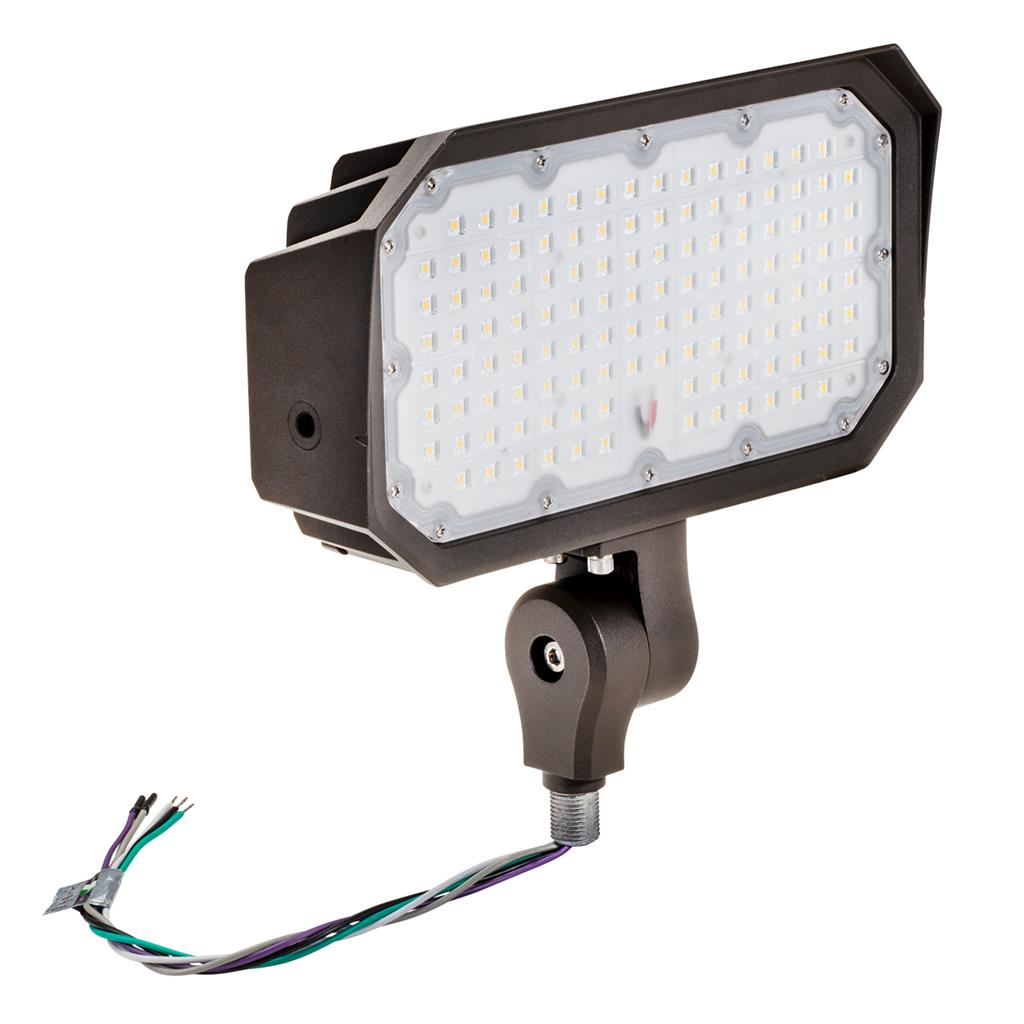

Topaz - 90W LED Medium Power Flood Light with Knuckle Mount, 4000K
