Superior LED Technology Delivers Consisitent Color Temperature and CRI

Topaz's Linear LED Strip Luminaires are the best energy efficient alternative solution for linear fluorescent fixtures. Designed to open up the room and distribute light spaciously along both the vertical and horizontal work space, offering uniform and comfortable lighting. Provides suitable light without any of the maintenance issues associated with fluorescent tubes and ballasts. Installation is quick and simple when mounting onto the surface of the ceiling. Constructed with a durable steel housing body and LED functional life of 50,000 hours.

FEATURES • Steel Housing with UV resistant white enamel finish

• Stem, chain or pendant mount options

• Equipped with heat resistant diffused lens

• 40W replaces 2x32W T8, 64W replaces 2x59W T8

• 0-10V dimmable*

• 5 year warranty

SUGGESTED APPLICATIONS

• Ideal for retail, supermarket, industrial/warehouses, government, hospitals, school/institutions

• Commercial, industrial applications

• Suitable for use in closets, compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)

GENERAL SPECIFICATIONS:

Input Voltage, Frequency Hz: 120-277VAC +/- 10%, 60 Hz

Dimmable: 0-10V*

Efficacy: Up to 130LPW CRI: 80

Functional Life (L70): 50,000 hours

Lumens Per Watt: High efficacy 130

Location Rating: Damp

THD: <20% Power Factor: >0.9

Beam Angle: 120°

Ambient Operating Temperature: -4°F to 104°F

Weight: (64W) 12.1 lbs, (40W) 6.65 lbs

DLC Category: Low-Bay Luminaires for Commercial and Industrial Buildings

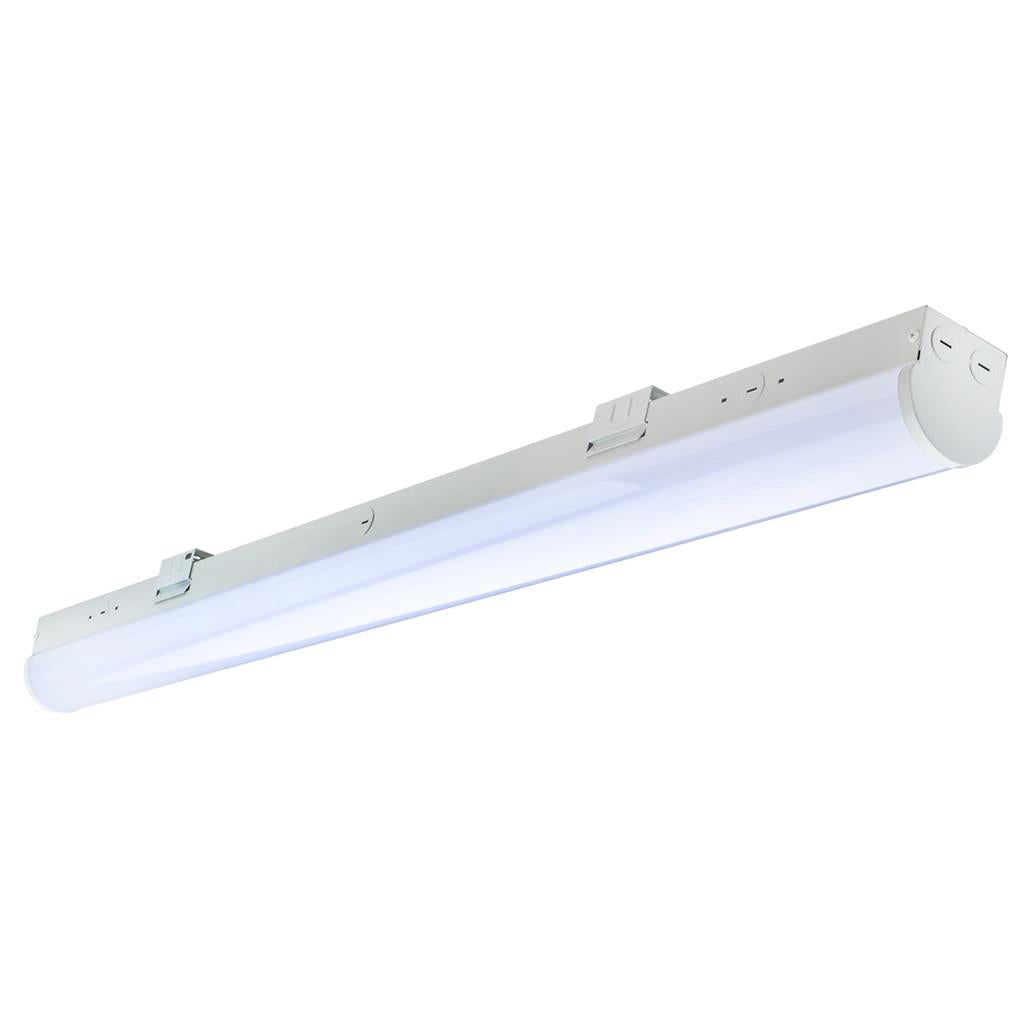

Topaz - LED 8' Linear Strip 4000k
