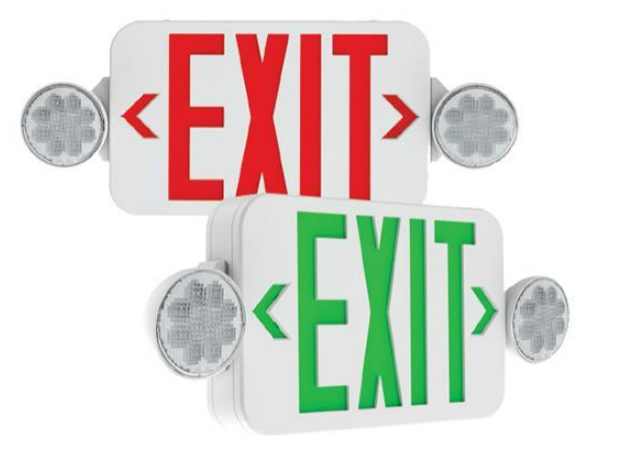

Universal Red/Green, Slim Thermoplastic Combo

The slim, universal red/green LED QCRS combination exit/emergency
unit combines LED exit signage with fully adjustable, round LED lamp
heads. This contemporary design offers long-life dependable service
in multiple field-selectable configurations and matches the QMR round
head emergency unit and/or the QXS exit sign. The QCRS easily
mounts above doors and in restricted spaces to fit any application. A
snap-in canopy is included for easy top mount installations. Each unit
ships with an extra stencil face as well as red and green diffusers.

FEATURES & BENEFITS
• Universal, field-selectable red/green LEDs and color matched
diffusers eliminates need to stock both colors
• Universal field-selectable single-/double-face
•Two (2) 1.5W fully adjustable round heads with long-lasting highintensity LED lamps
•Easy snap-out, field-selectable chevrons
•Suitable for Damp Locations
• California Energy Commission (CEC) Title 20 Compliant
The slim, universal red/green LED QCRS combination exit/emergency
unit combines LED exit signage with fully adjustable, round LED lamp
heads. This contemporary design offers long-life dependable service
in multiple field-selectable configurations and matches the QMR round
head emergency unit and/or the QXS exit sign. The QCRS easily
mounts above doors and in restricted spaces to fit any application. A
snap-in canopy is included for easy top mount installations. Each unit
ships with an extra stencil face as well as red and green diffusers.
10800340 Rev 7
ULTIMATE PERFORMANCE. UNPARALLELED VALUE.
18"
7.2"
11.6" 1.8"
8.2"
4.3"

SPECIFICATIONS
Illumination: Legend: Field-selectable red or green LEDs,
includes color matched diffusers
Lamps: Two (2) fully adjustable long-life, highintensity LED lamp heads, 1.5W per head
Housing: Injection-molded UL 94 V-0 flame-retardant, highimpact resistant thermoplastic enclosure
Electrical Input: 120/277VAC Dual primary, 60Hz
Battery: Maintenance-free 3.6V NiCad battery
Operating Temp: 0°C to 40°C (32°F to 104°F)
Run Time: 90 Minute emergency run time, 24 hour recharge time
Legend: Fully illuminated 6" characters with 3/4" stroke
Mounting: Ceiling or wall mount
Finish: White
Certifications: UL 924 Listed for Damp Locations
Meets NFPA 101 Life Safety Code, NEC, OSHA
California Energy Commission (CEC) Title 20 Compliant
Warranty: Any component that fails due to a manufacturing
defect is guaranteed for five years with a separate
five year prorated warranty for NiCad batteries. The
warranty does not cover physical damage, abuse
or instances of uncontrollable natural forces. See
the full Exitronix warranty document for detailed
information. (Terms and conditions apply)
