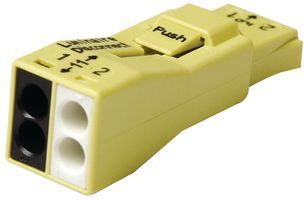

2-Port Ballast Disconnect Connector - 50 - pack

If you're looking for a safe and quick ballast disconnect process, look for further than the Series 873 2-port Ballast Disconnect socket. The purpose of this socket is to provide no hassle way to safely disconnect luminaries and ballasts by reducing the chance of exposure to the inner wiring, i.e. electric shock. The great thing about this compact design can be wired with either end of ballast leads or inline leads. This product is great for commercial, industrial, and other non-residential lighting units while providing the best ballast disconnect method.

Product Specifications

Conductor Range:

• Mole connector - line
• AWG 18-12 solid
• AWG 16-12 stranded (<19 strands)

Female connector - ballast

• AWG 18 solid
• Electrical specs: 600V/ 6 Amax.

Color: Yellow (housing)

Strip length: l0 - 13 mm / 0.45 in (line)

6 - 8 mm / 0.28 in (ballast)

Safety Compliance

• NEC 410.73
• CSA/UL Standard 2459
• ANSI/NFPA-70
• CEC 30-308
