100W HPS Shoebox Area Light

100W HPS Shoebox Area Light

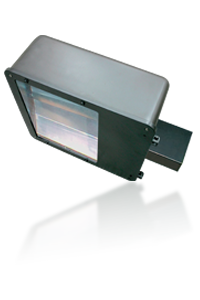

The 100 watt HPS shoebox area light is our lowest wattage high pressure sodium shoebox luminaire, yet it produces a sufficient amount of illumination suitable for any outdoor location. The WP301-HPS-100 has a die cast aluminum housing that has been powder coated with an architectural bronzed finish. This protects the housing from outside corrosion caused by rain, snow, foul weather and long exposure to sunlight.

Our 100 watt HPS shoebox area lights are fully gasket-sealed enclosures that are Wet Location Listed by the Underwriter's Laboratories (UL). The stainless steel fastening hardware on the light's lens frame will never rust and can easily be removed with a Phillips or standard screwdriver to service the HPS bulb and internal components.

Talk to us today to order your WP301-HPS-100 by calling 800-839-4734. For more detailed responses, or to obtain a quote, we highly suggest you email our production team.

Key Features

  • Minimum operating temperature: 30°C (-22°F)
  • HPS lamps rated at 10,000 hours of use
  • Dark Sky Compliant
  • Buy America Approved
  • UL Listed for Wet Locations

Electrical Specification

  • Multi-tap - 120/208/240/277VAC
  • Optional 480VAC input (please specify)
  • Pulse Start CWA ballast

Reflector Options

  • IES Type 5
  • Forward Throw
  • Wide Angle
  • Full Cutoff
  • Horizontal Mount
  • Cobra Style

Mounting Options

  • 6" Pole Bracket (standard)
  • Large Mounting Yoke
  • Slip Fitter
  • Swivel Bracket
  • Heavy Duty Direct Pole Mount


Please call 800-839-4734 to ensure options are applicable to your location.

Photocontrol Photocell - sensor detects sunrise and sunset and automatically activates the light accordingly. Select 120V or 208-277V photocontrol.

Glare Shield - select Half or Full shield.

Wireguard - offers further protection against vandalism.

Polycarbonate Guard - a clear protective lens.

Baffle - for a very narrow lighting spread. Choose Full or Half.
