250W HPS Shoebox Area Light

250W HPS Shoebox Area Light

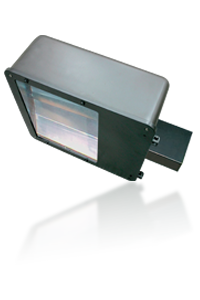

The 16" die cast aluminum 250W HPS shoebox area light has an appealing architectural bronze powder coat finish that makes it nearly impervious to rust or flaking. Its aluminum enclosure is fully sealed using high-heat rubber gaskets which prevent any intrusion of water or moisture, keeping the lamp and internal components dry at all times.

On the underside of our 250W HPS shoebox area lights is the tempered glass lens, which is highly resistant to impacts. By removing the stainless steel screws in the hinged lens assembly you can easily access the internal components including the lamp, mogul socket base, reflector and CWA ballast.

Thinking of ordering the WP301-HPS-250? Call us toll-free at 800-839-4734. To generate a quote or invoice, please email our production team.

Key Features

  • Minimum operating temperature: 30°C (-22°F)
  • HPS lamps rated at 10,000 hours of use
  • Dark Sky Compliant
  • Buy America Approved
  • UL Listed for Wet Locations

Electrical Specification

  • Multi-tap - 120/208/240/277VAC
  • Optional 480VAC input (please specify)
  • Pulse Start CWA ballast

Reflector Options

  • IES Type 5
  • Forward Throw
  • Wide Angle
  • Full Cutoff
  • Horizontal Mount
  • Cobra Style

Mounting Options

  • 6" Pole Bracket (standard)
  • Large Mounting Yoke
  • Slip Fitter
  • Swivel Bracket
  • Heavy Duty Direct Pole Mount


Please call 800-839-4734 to ensure these options are right for your business.

Photocontrol Photocell - sensor detects sunrise and sunset and automatically activates the light accordingly. Select 120V or 208-277V photocontrol.

Glare Shield - select Half or Full shield.

Wireguard - offers further protection against vandalism.

Polycarbonate Guard - a clear protective lens.

Baffle - for a very narrow lighting spread. Choose Full or Half.
